All Products

  • Cast Resin Transformer for Indoor & Outdoor
    CEEG's cast resin dry-type transformer is well-suited for indoor settings demanding fire and explosion protection, high temperature and moisture resilience, like commercial centers, residential areas, hospitals, and factories. It also meets the rigorous standards for special outdoor environments, such as petrochemical enterprises, and its excellent resilience to seasonal load variations and overload conditions makes it a highly reliable distribution transformer.

    In addition to regular models, we also provide rectifier transformers, dual-voltage transformers, double-split transformers, and other special transformers catered to specific needs.

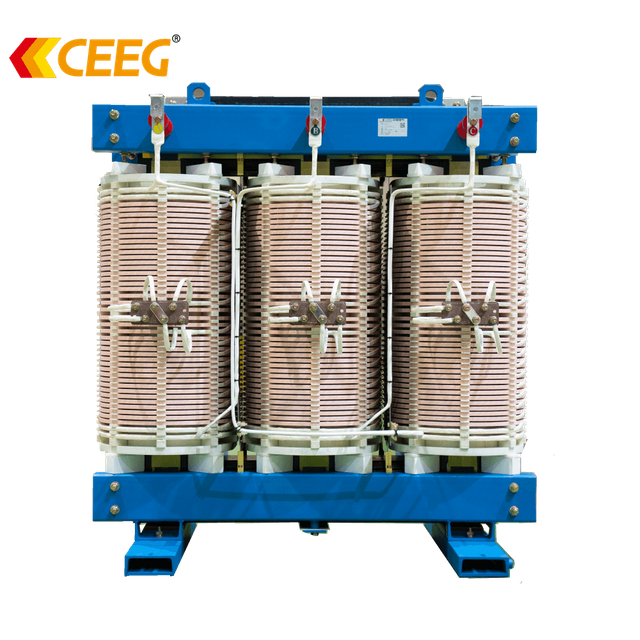

  • VPI (Vacuum Pressure Impregnated) Transformer with C-class Insulation
    CEEG was a pioneer in China (in 1999) to use DuPont Nomex paper as insulation material, the first to pass the KEMA E2, C2, and F1 tests (in 2004), and the first C class insulation with CSA certificate for ventilated dry-type transformers. It's an excellent choice for places requiring strict fireproofing, and having large rating waves, dirtiness, and moisture, such as airports, subways, power plants, mines, hospitals, high-buildings, shopping centers, crowded areas, the oil industry, nuclear power plants, etc.
  • 10kV Efficient Oil-Immersed Distribution Transformer
    The CEEG 10kV oil-filled distribution transformer is meticulously handled at each stage to achieve low loss, low noise, low temperature rise, low partial discharge, high reliability, as well as no core hoisting and oil leakage. Products conform to a wide range of standards, including the United States, the European Union, Canada, the Middle East, Australia, and other markets for transformers
  • 35kV Oil-immersed Power Transformer UL Certified
    The 35kV series liquid-filled transformers offer a leak-proof design, low energy loss, minimal noise, and high reliability, all without the need for core suspension. We are well-versed in various international standards, including those of the United States, the European Union, Canada, the Middle East, and Australia. Our expertise enables us to manufacture transformers that meet any specific market requirements.
  • 110kV (66kV) Oil-immersed Power Transformer
    The CEEG 110Kv (66kV) power transformer performs well in high-temperature, high-load distribution networks and environments with shock loads and continuous overloading demands. It is widely used for urban power grids, power plants, utilities, manufacturers, and industrial engineering. Product quality and process conform to a wide range of standards, including the US, EU, Canada, the Middle East, Australia, and other markets for transformers. Models available include S11, S13, S18, S20, S22, SS18, SZ18, SSZ18, and others.
  • 220kV High Voltage Oil-filled Power Transformer
    The CEEG 220kV oil-filled power transformer is designed for use in urban power grids, power stations, and large industrial and mining enterprises. It boasts low no-load loss, low load loss, low noise level, partial discharge below 40 pC, strong overload capacity, short-circuit resistance, and no oil leakage, making it a highly reliable high-voltage transformer. Product quality and process conform to a wide range of standards, including the US, EU, Canada, the Middle East, Australia, and other markets for transformers. Available models include S11, S18, S20, SS20, SSZ20, SSZ22, OSSZ20, and more.

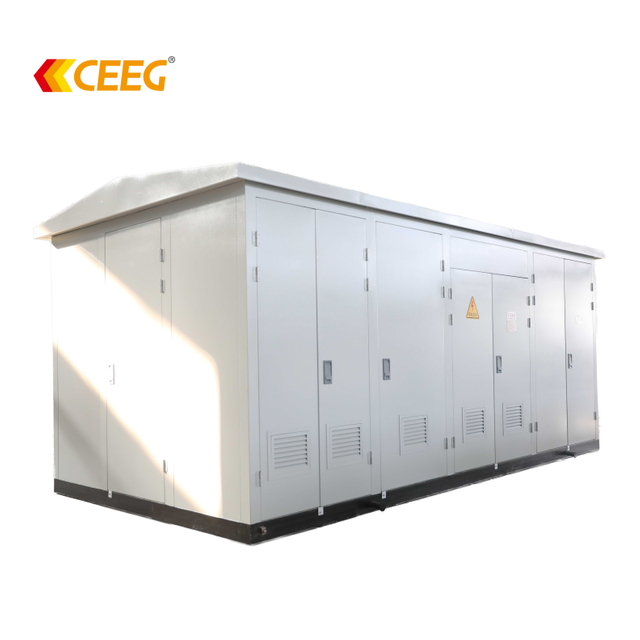

  • Prefabricated Unit Substation
    The CEEG compact substation integrates high-voltage switchgear, distribution transformer, and low-voltage switchgear, suitable for both indoor and outdoor use. The packaged substation features strong integration, a small footprint, low investment, and easy installation and maintenance. Rated voltages: 6KV, 10KV, 35KV. Enclosure protection ratings: IP54, IP33, with custom solutions available for special requirements.
  • Low Voltage (0.4kV) Medium Voltage (6.6kV) Marine Transformer
    CEEG marine transformer has two cooling ways: self-cooled (AN) and fan-cooled (AF). We also provide the AFWF transformer, 12-pulse and 24-pulse rectifier transformers, and other models. The product's moisture resistance, salt spray resistance, mold resistance, rust resistance, and seismic resistance are designed for marine applications including power supply, lighting, isolation, and rectification in power grids, such as shore power and oil platforms.
