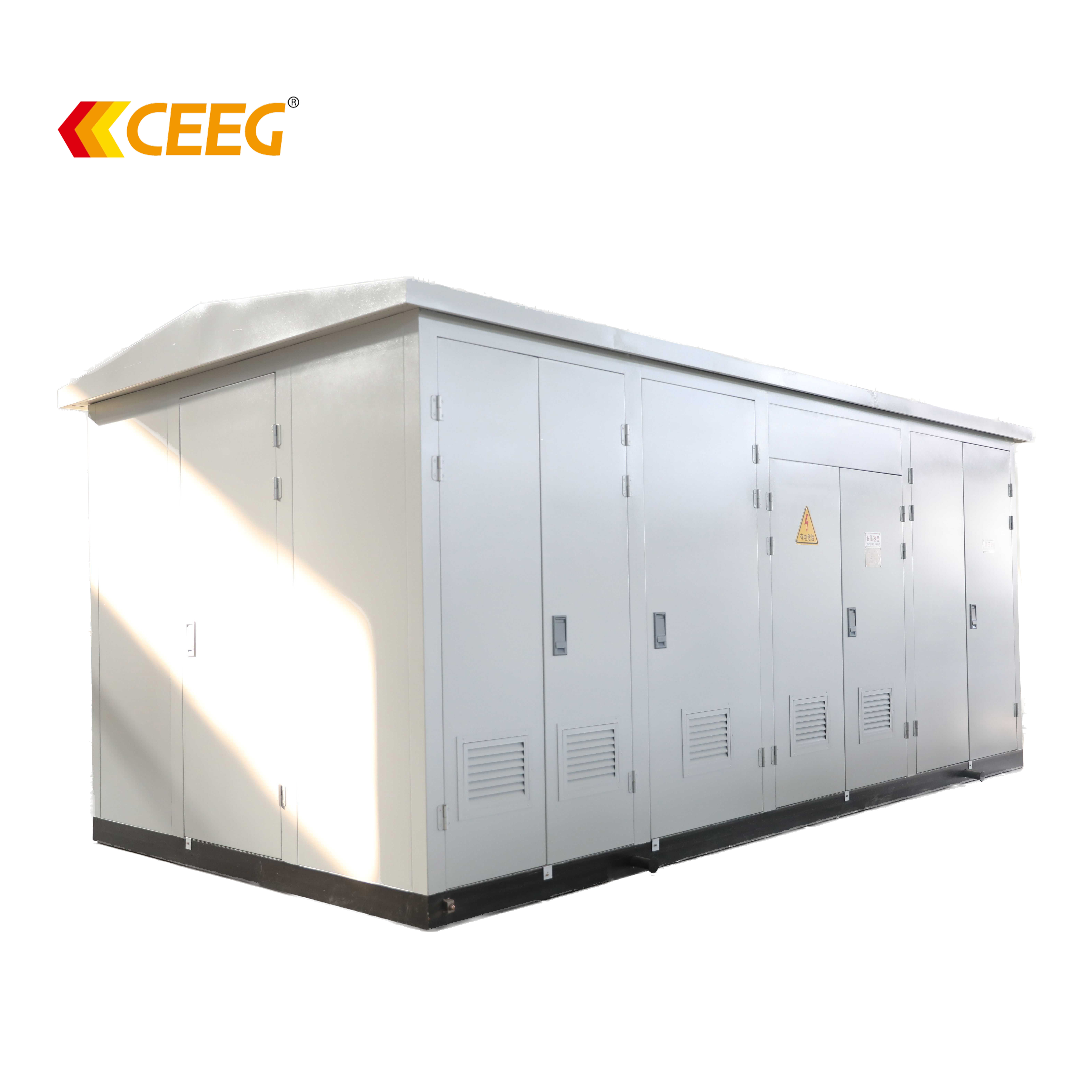

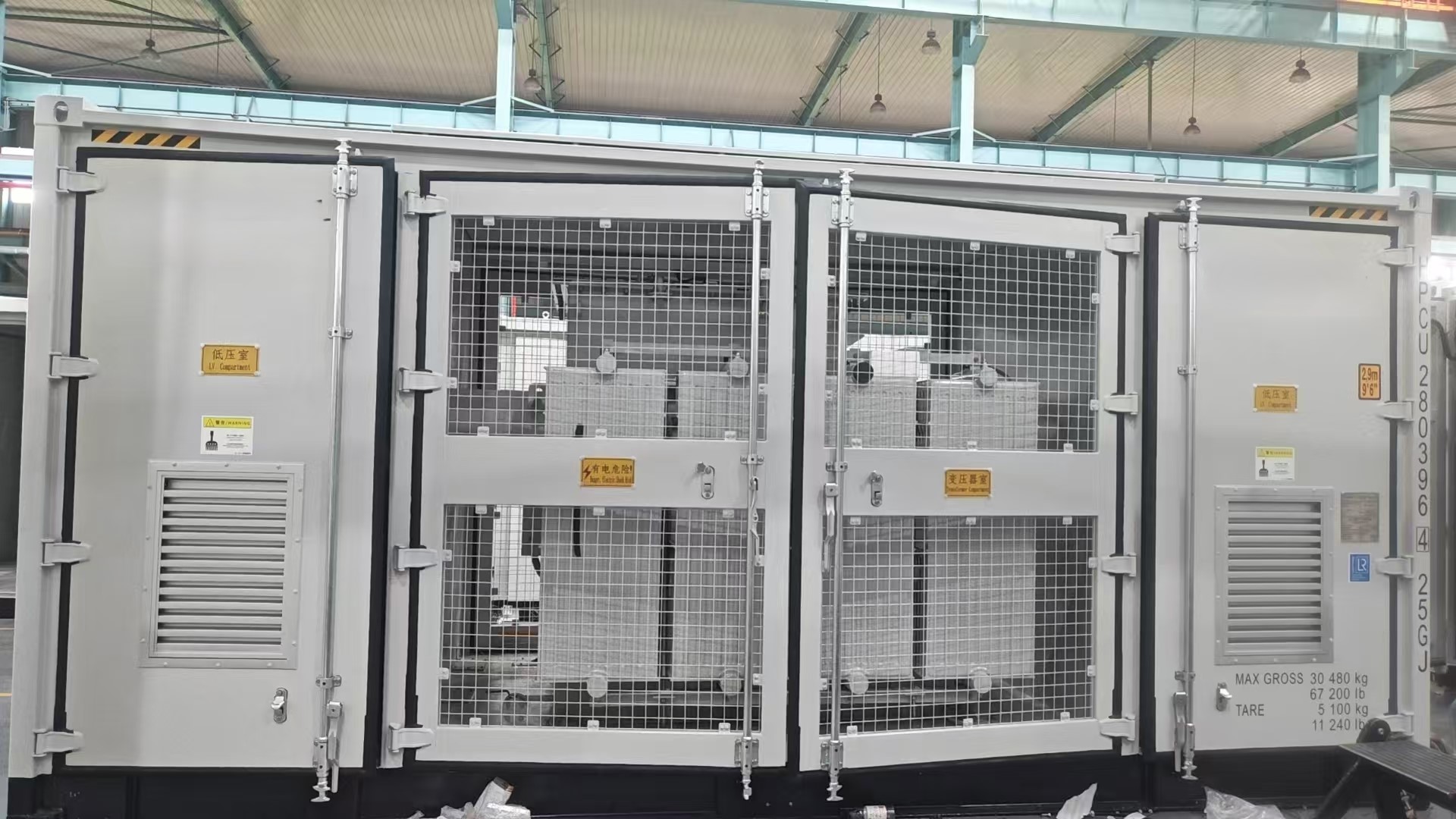

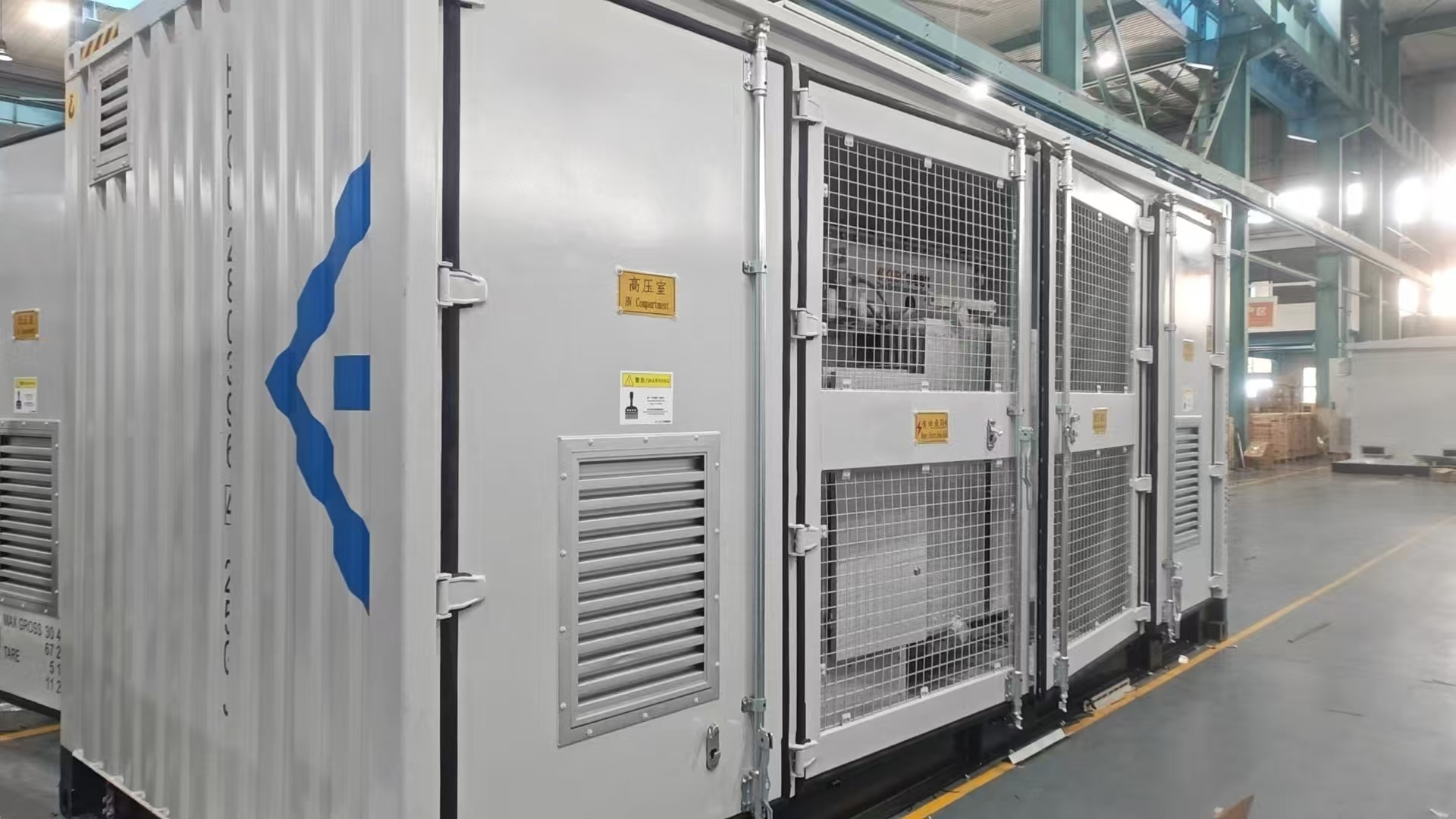

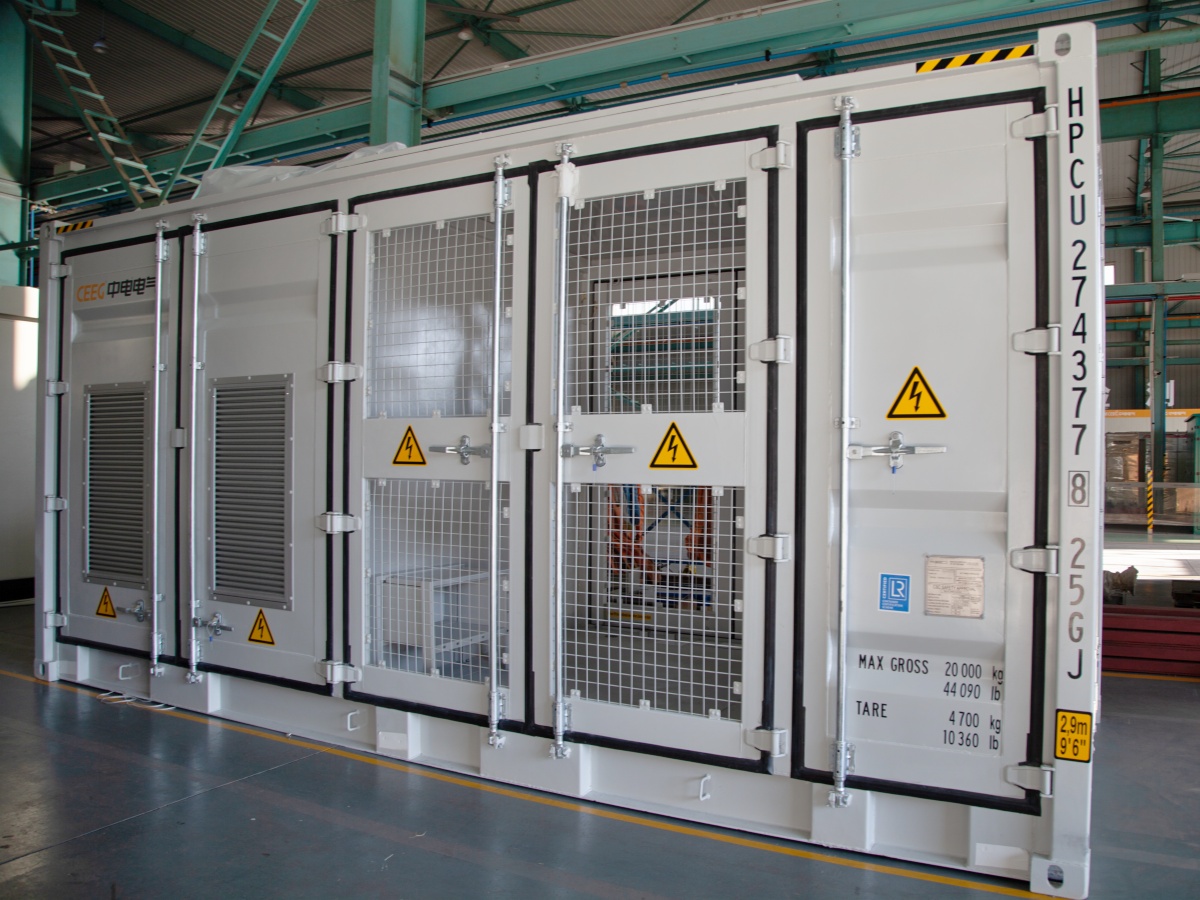

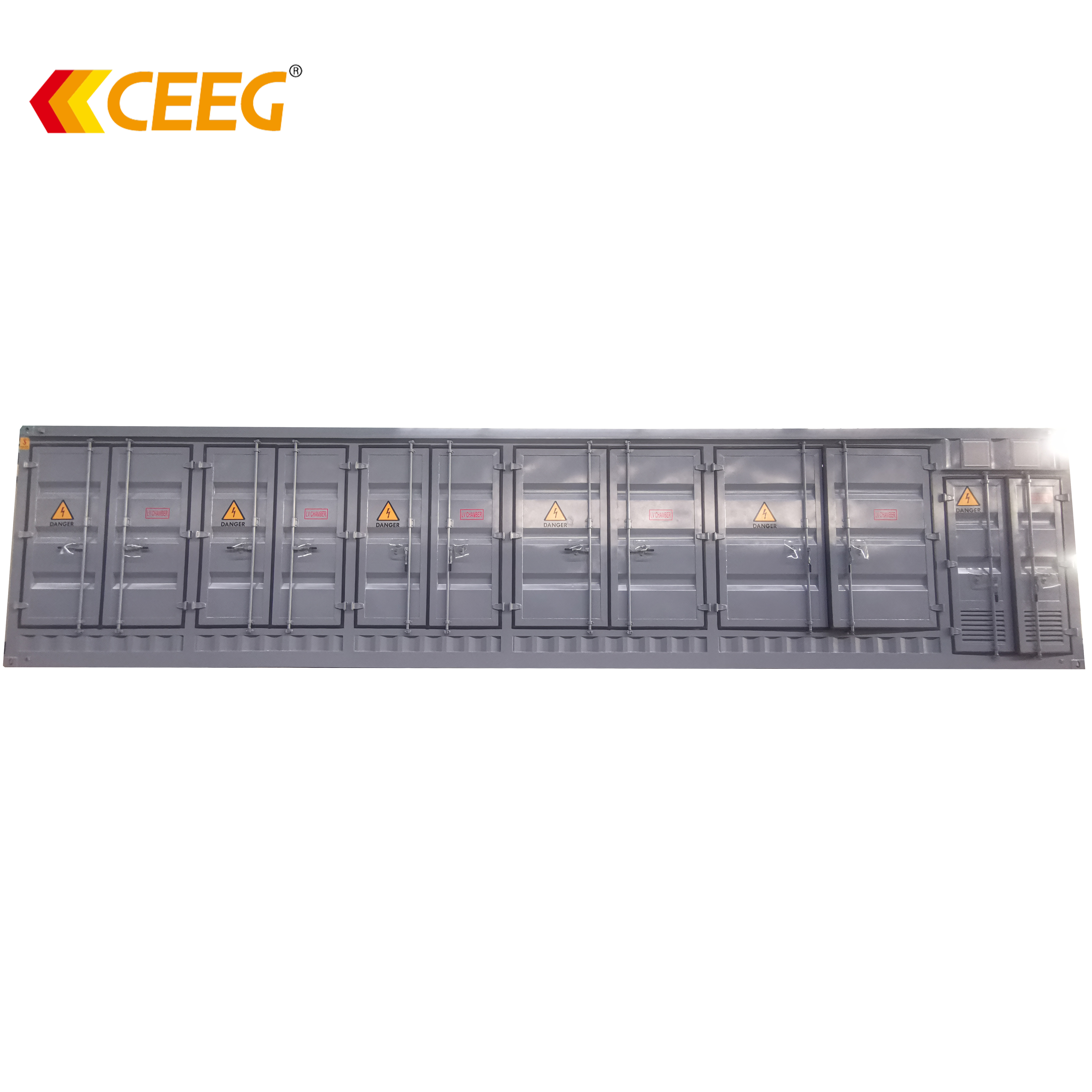

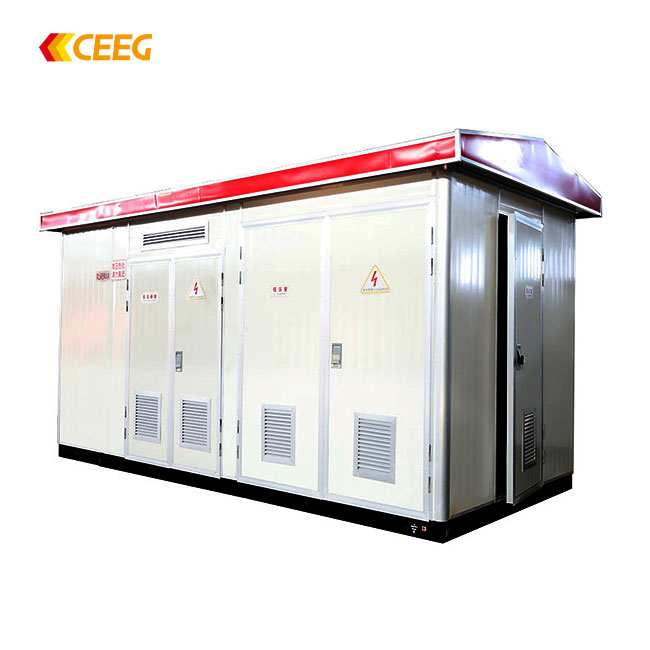

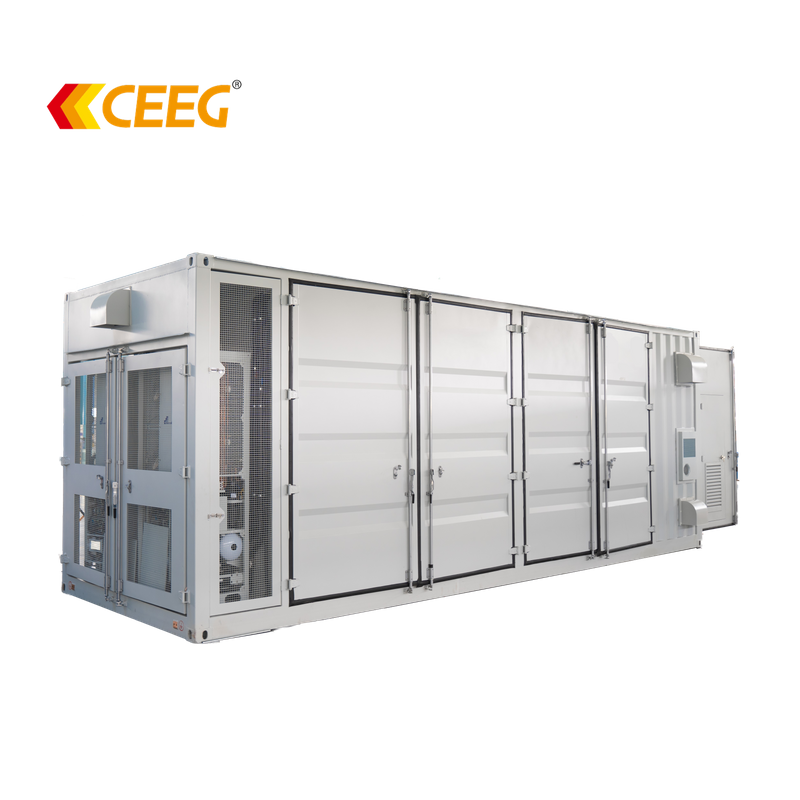

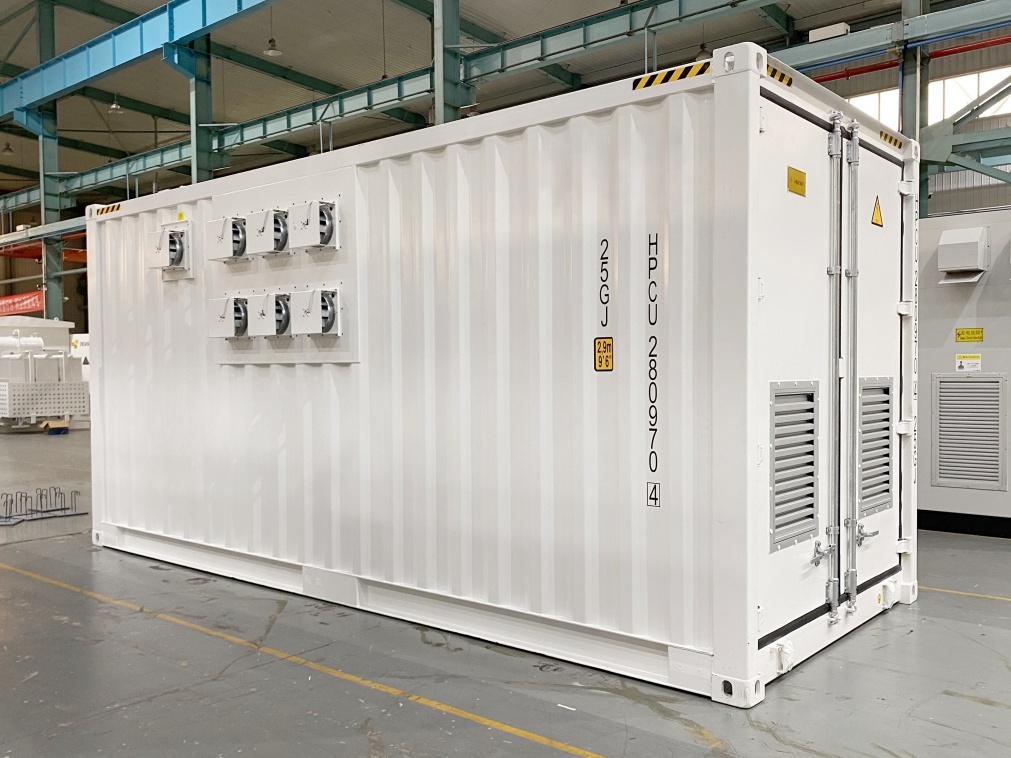

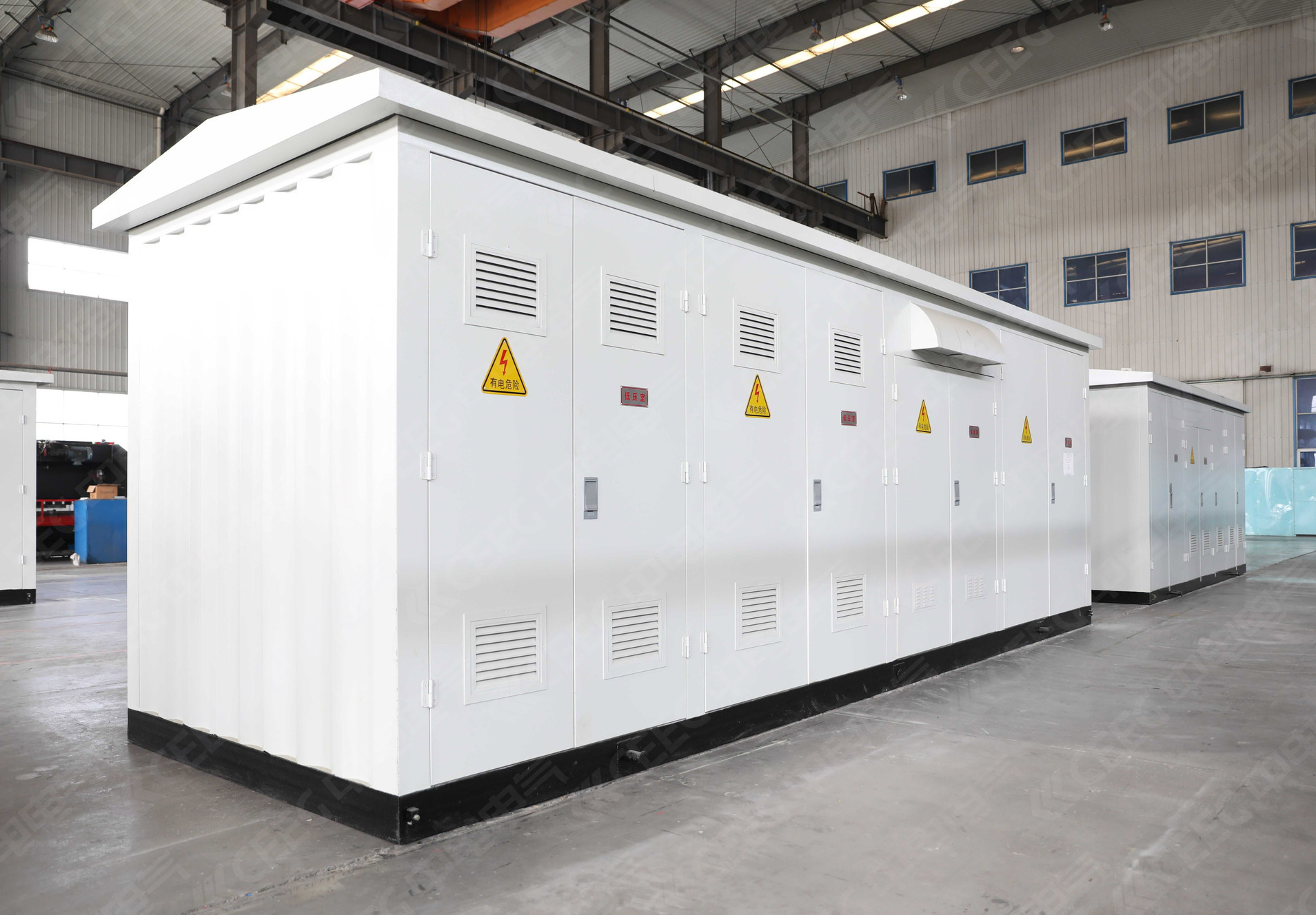

The Turnkey Power Solution for Global Infrastructure CEEG's prefabricated substation units are high-performance, modular power distribution centers, offering compact, containerized, and e house designs. Combining HV switchgear, distribution transformers, and LV control systems into one secure enclosure, these units offer a "plug-and-play" alternative to traditional brick-and-mortar substations.
Why CEEG is the Choice for International Procurement?

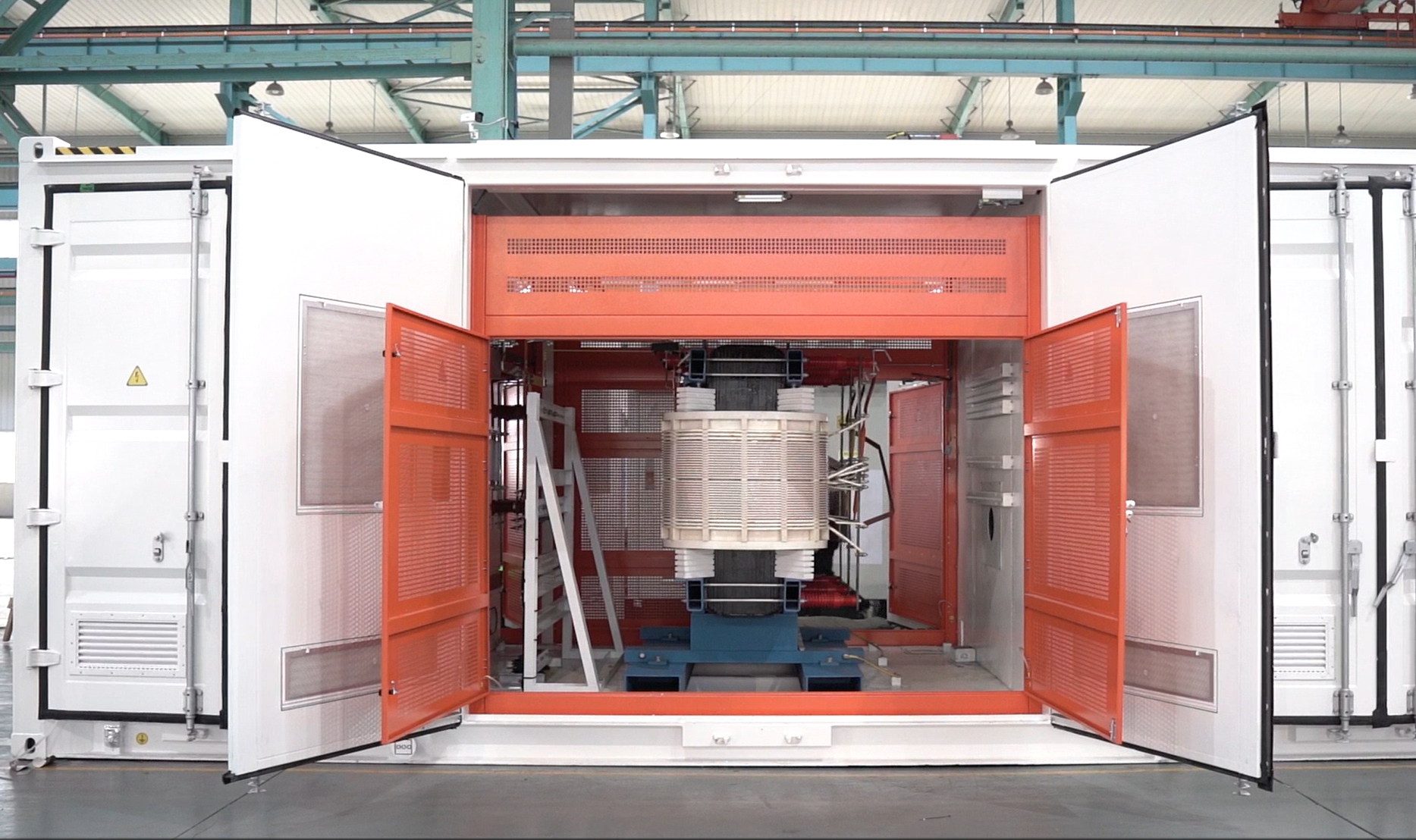

1. International Export Proven: Engineered to meet IEC 62271-202 and EN standards, our units are already operational in North American and British grids, ensuring compliance with international safety and performance benchmarks.
2. Rapid Deployment: Factory-assembled and pre-commissioned. Reduce your on-site installation time by up to 80% compared to traditional civil works.
3. Space Efficiency: Features a compact footprint (only 1/10th the size of conventional stations), making it ideal for dense urban areas, London-style residential developments, or restricted industrial sites.
4. Extreme Resilience: Built with high-grade, anti-corrosive materials (IP54/IP65) to withstand diverse climates—from the humid coastal air of the UK to the temperature extremes of the American Midwest.
Feature
Specification Details
Voltage Range
Primary up to 35kV; Secondary tailored to local grid requirements.
Transformer Choice
Available with CEEG’s DuPont Nomex® insulated dry-type or high-efficiency oil-immersed transformers.
Enclosure Materials
Aluminum alloy, stainless steel, or GRC (Glass Fiber Reinforced Cement) for architectural blending.
Smart Integration
Fully compatible with SCADA and remote monitoring systems for real-time diagnostics.
Key Advantages for Project Managers
Enhanced Safety: Equipped with a "Five-Proof" mechanical/electrical interlocking system to prevent operator error.
Low Maintenance: Specialized ventilation and dust-proof designs ensure long-term reliability with minimal site visits.
Environmental Harmony: Quiet operation and customizable exterior finishes allow for seamless integration into parks, city centers, or commercial districts.
Applications
Renewables: Solar and wind farm step-up stations.
Public Utilities: Municipal power distribution and smart city grids.
Industrial: Mining, oil & gas, and manufacturing facilities.
Data Parameters
No.
Items
Technical Parameter
Specification
1
Operating Environment and Protection Level
Altitude
＜2000m
2
Temperature Range
-25 - +40℃
3
Relative Humidity
0-95%
4
Anti-Corrosion Level
C4/C5
5
IP Protection
IP54
6
Transformer
Capacity
500-10000kVA
7
Vector Group
Dy11
8
Turns Ratio
0.4（0.69）KV/10（20）（35）kV
9
Efficiency
Tier1/Tier2
10
Cooling Method
AN/AF
11
Corrosion Protection Classes
C4
12
Compliant Standard
IEC 62271-202
13
Non-Electrical Protection for Transformers
Yes
14
High Voltage Cabinet
Wiring
Cable Entry: Bottom / Cable Exit: Bottom
15
Grid Connection Voltage Levels
12KV , 24kV，40.5KV
16
Auxiliary Power&UPS
Auxiliary Transformer Capacity
40-200kVA
17
Auxiliary Transformer Vector Group and Voltage Ratio
Dyn11 690/400/230V
18
Required Power and Number of Battery String Circuits
As required
19
UPS Capacity and Backup Duration
As required
20
EMS&Communication(optional)
Communication Topology of the Energy Storage Power Station:
IEC 61850 or Modbus TCP
21
Switch Communication Configuration
20 electrical ports, 100Mbps
22
Acceptance Standards
Compliant with IEC, EN, and GB standards
