High Voltage and Large Capacity Dry-type Transformer for Outdoor

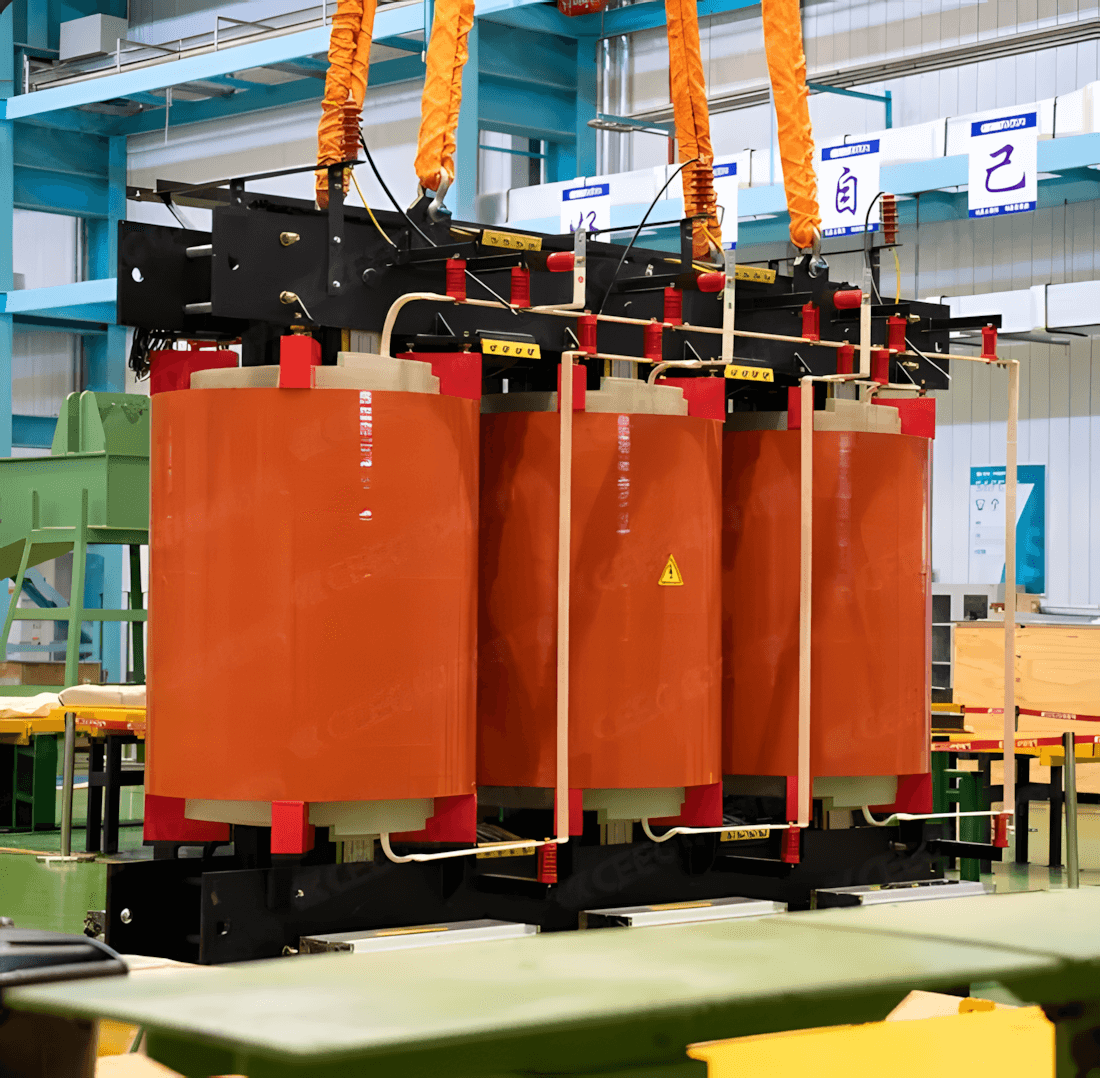

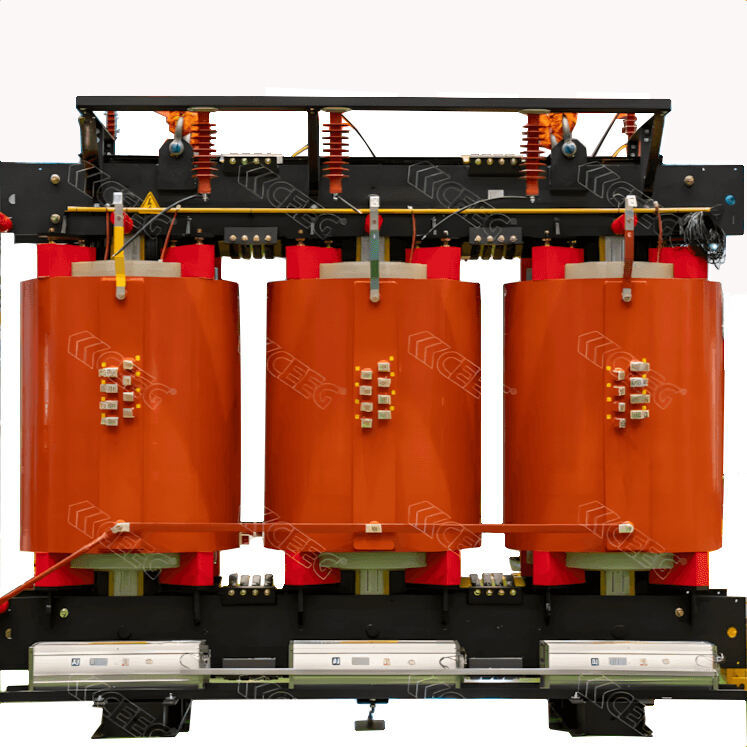

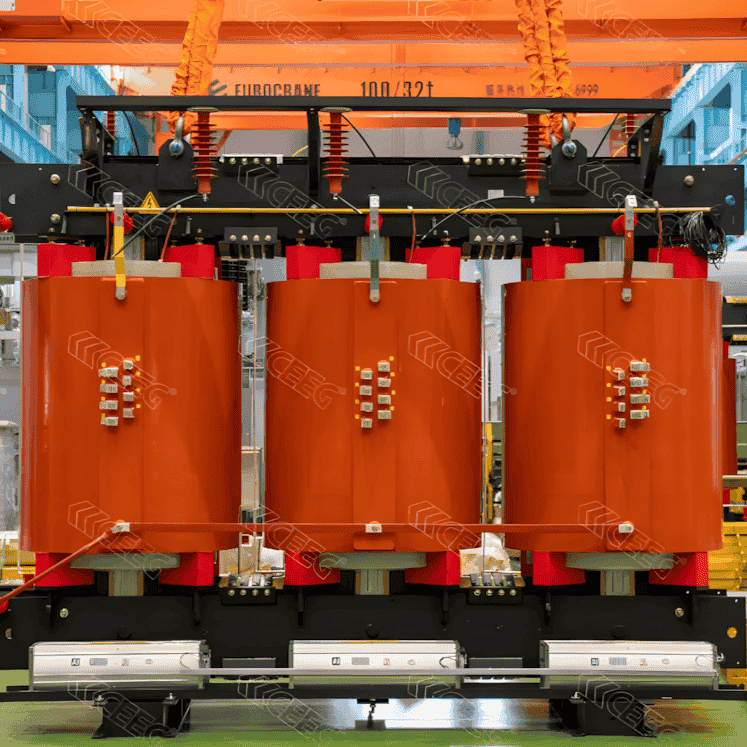

The CEEG SCZ18-10000/35 high voltage large capacity dry-type transformer is designed for long-distance power transmission demanding large capacity power and strong environmental resilience, especially the rise of clean energy has led to an increase in ultra-high voltage (UHV) transmission in recent years.
Utilizing low-temperature resistant materials and flame-retardant resin, this transformer maintains stable performance in cold environments while ensuring substation fire safety. It enhances reliability and durability in harsh climate conditions.
2. Special Anti-Creepage Coating
The transformer features a specially designed anti-creepage coating that effectively prevents erosion from frost and rain, ensuring safe and stable operation of electrical equipment even in extreme weather.
3. Compact Design for Transportation Solutions

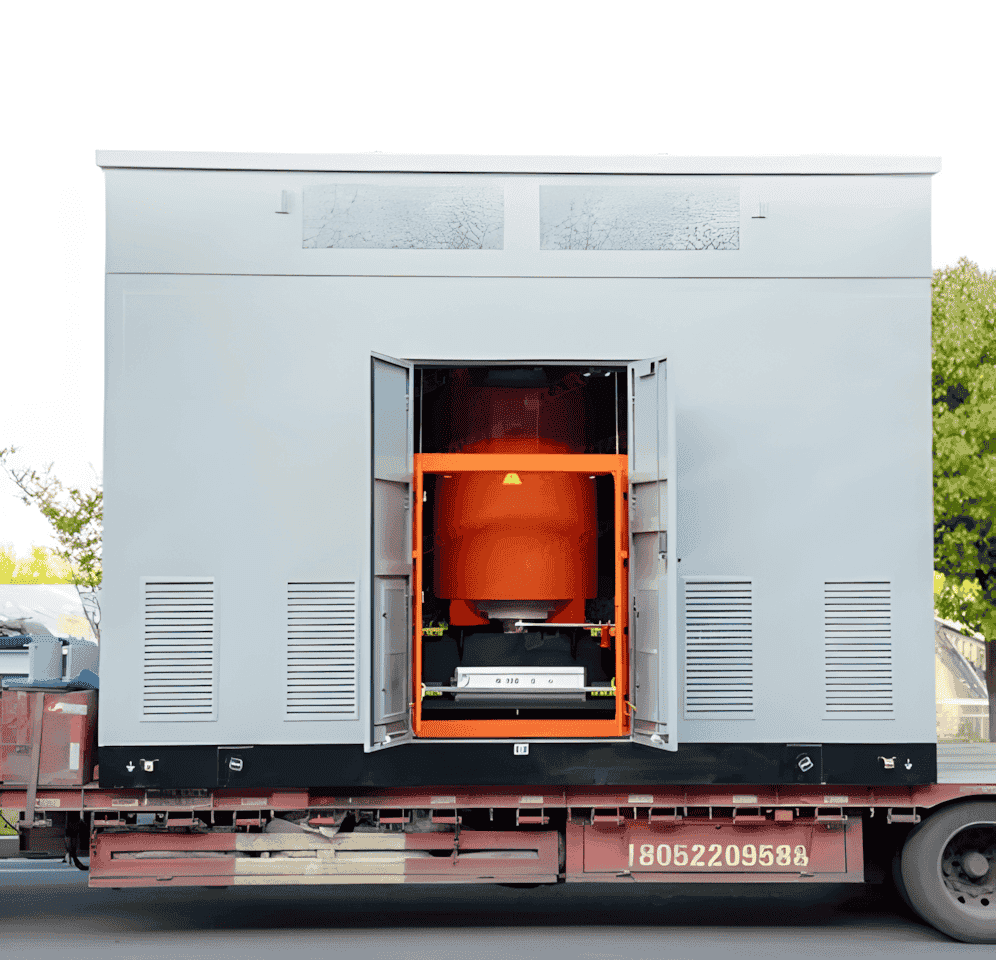

The overall structure of the product is optimized to reduce space occupancy during transportation, lowering costs and minimizing potential risks.
4. Specialized Fixation Scheme
The transformer is equipped with a special fixation system that effectively reduces vibrations and impacts during transport, ensuring structural integrity and stable functionality.
A Holistic Mindset
Throughout the design and manufacturing process, CEEG thinks about the problem holistically. We focus on the entire system to ensure that the substation operates efficiently and stably when faced with various challenges. The following are the approaches we take in making the product:
Market and Customer-Oriented: The growing demand for ultra-high voltage (UHV) and extra-high voltage (EHV) power transmission, coupled with the need for large power and stable performance from renewable energy installations, utilities, industrial plants, and other sectors, drives the need for high voltage and large capacity transformers with customized services.
Competitive Technology: The transformer utilizes on-load epoxy cast dry-type transformer technology and several other core technologies to achieve high performance.
Efficient and Stable: The transformer integrates core technologies such as high voltage and low voltage surge arresters and on-load tap changers, ensuring efficient and stable operation despite load variations and grid fluctuations.
Intelligent Operations and Maintenance: Equipped with an intelligent camera system and a backend intelligent wide-range voltage regulation function.
Technical Parameters
High Capacity Large Volume Cast Resin Dry Type Power Transformer
Rated Capacity kVA
Load loss kW
Short circuit impedance%
No-Load Current% Pk(W)
Size
6300
8910
8
0.35
3250* 1800*2565
8000
10170
9
0.3
3390* 1800*2675
10000
11610
9
0.25
3570*2000*2765
12500
14130
9
0.2
3770*2000*2885
16000
17370
9
0.2
4200*2000*3150
20000
20610
10
0.2
4610* 2000* 3460
25000
24390
10
0.2
4810* 2000* 3490
Product Feature
1. Innovative Design for Extreme Climates
Utilizing low-temperature resistant materials and flame-retardant resin, this transformer maintains stable performance in cold environments while ensuring substation fire safety. It enhances reliability and durability in harsh climate conditions.
2. Special Anti-Creepage Coating
The transformer features a specially designed anti-creepage coating that effectively prevents erosion from frost and rain, ensuring safe and stable operation of electrical equipment even in extreme weather.
3. Compact Design for Transportation Solutions
The overall structure of the product is optimized to reduce space occupancy during transportation, lowering costs and minimizing potential risks.
4. Specialized Fixation Scheme
The transformer is equipped with a special fixation system that effectively reduces vibrations and impacts during transport, ensuring structural integrity and stable functionality.
A Holistic Mindset
Throughout the design and manufacturing process, CEEG thinks about the problem holistically. We focus on the entire system to ensure that the substation operates efficiently and stably when faced with various challenges. The following are the approaches we take in making the product:
Market and Customer-Oriented: The growing demand for ultra-high voltage (UHV) and extra-high voltage (EHV) power transmission, coupled with the need for large power and stable performance from renewable energy installations, utilities, industrial plants, and other sectors, drives the need for high voltage and large capacity transformers with customized services.
Competitive Technology: The transformer utilizes on-load epoxy cast dry-type transformer technology and several other core technologies to achieve high performance.
Efficient and Stable: The transformer integrates core technologies such as high voltage and low voltage surge arresters and on-load tap changers, ensuring efficient and stable operation despite load variations and grid fluctuations.
Intelligent Operations and Maintenance: Equipped with an intelligent camera system and a backend intelligent wide-range voltage regulation function.
Technical Parameters
High Capacity Large Volume Cast Resin Dry Type Power Transformer
