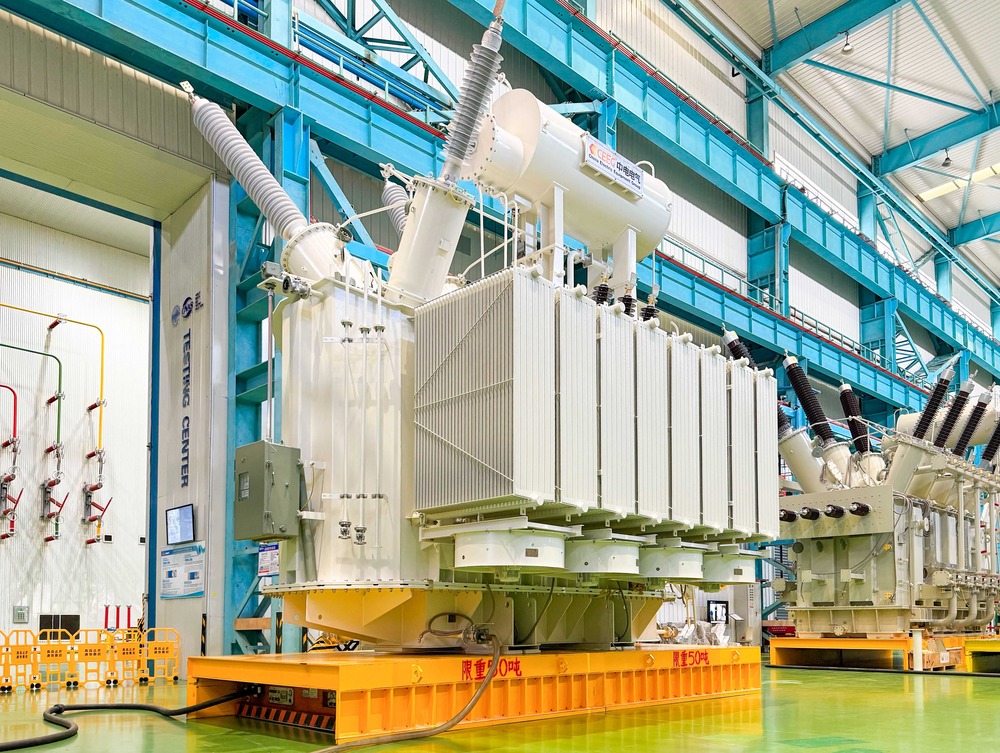

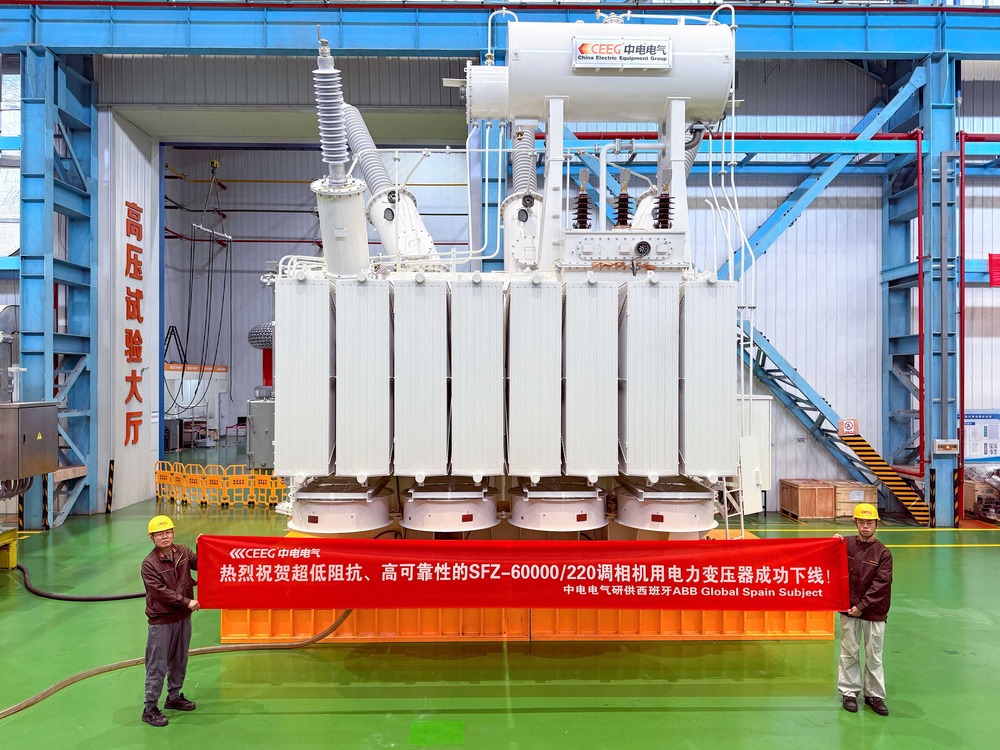

CEEG recently completed the shipment of a 220kV/13.8kV/60MVA power transformer custom-built for Spain's national grid. This transformer is designed specifically to drive a large synchronous condenser system, tackling extreme operating conditions such as the high short-circuit currents caused by an exceptionally low impedance of just 5%. With its superior short-circuit withstand capability, it represents a new generation of efficient and reliable green energy equipment.
Key technical highlights include:
1. Energy Efficiency: Ultra-low impedance of 5%, significantly reducing both reactive and active power losses, enhancing the overall efficiency of the condenser unit, and meeting the EU grid's strict standards for energy efficiency.
2. Strong Short-Circuit Resistance: High-strength transposed conductors and optimized winding structure provide robust mechanical support and clamping strength, ensuring structural stability and safe operation even under short-circuit currents up to 20 times the rated value.
3. Precise Design: Comprehensive finite element analysis (FEA) was applied to simulate electromagnetic, thermal, and short-circuit performance, ensuring reliability under extreme conditions from the design stage.
4. Adaptability to Complex Working Conditions: For the long-term overvoltage characteristics of synchronous condensers, the magnetic circuit design and silicon steel selection were optimized to enhance overexcitation withstand capability, maintaining stable performance even during system voltage fluctuations.
This project marks a milestone in CEEG's expansion into the international high-end specialty transformer market and a meaningful contribution to the European power grid upgrade. Moving forward, CEEG will continue to provide customized, high-performance power solutions to support the global energy transition.
